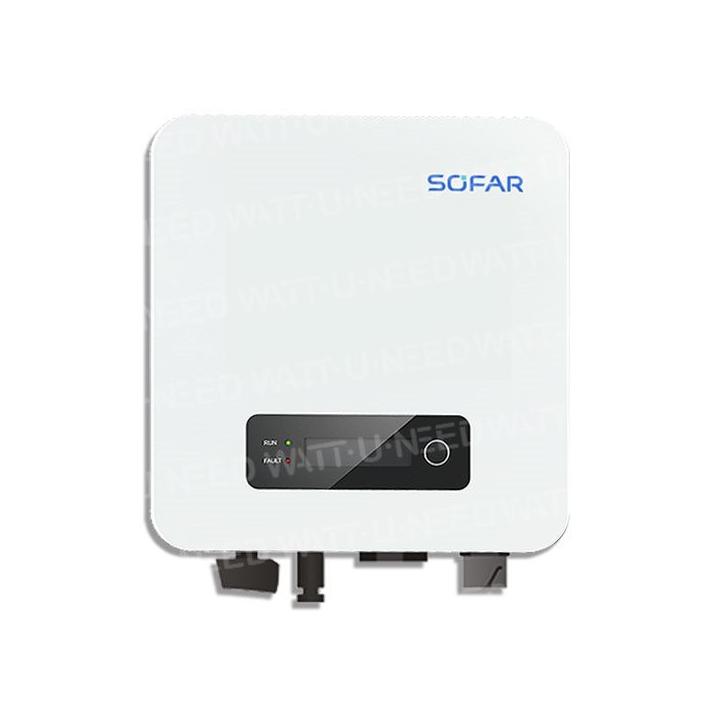

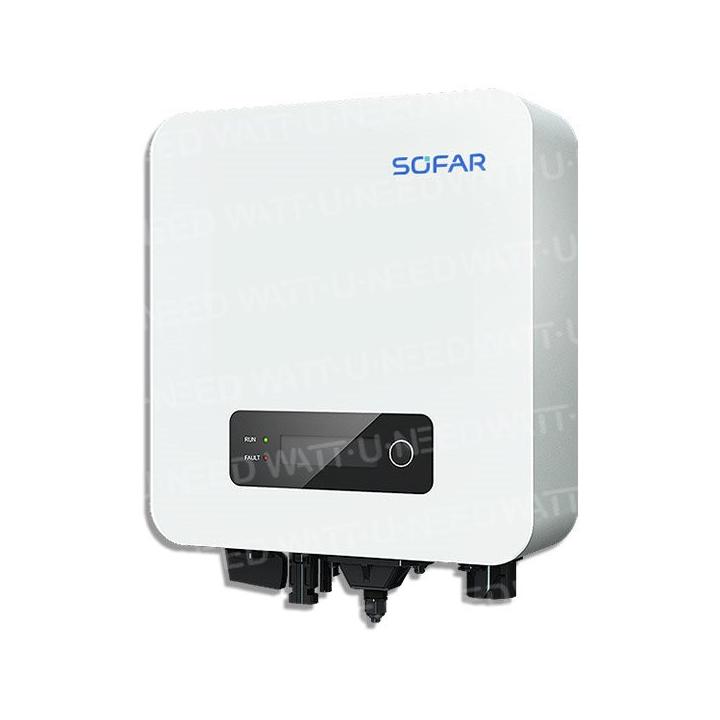

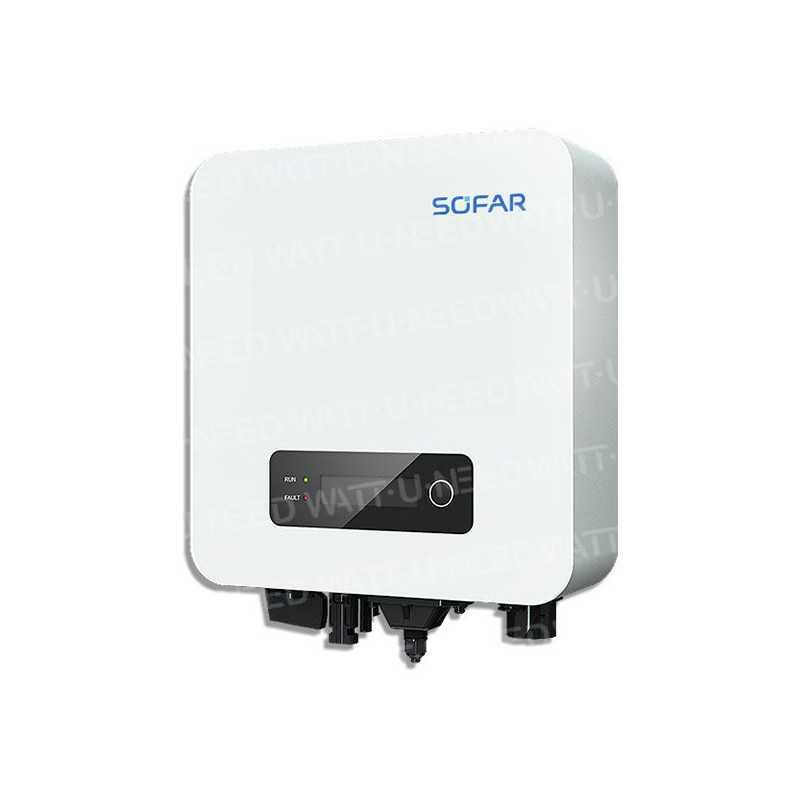

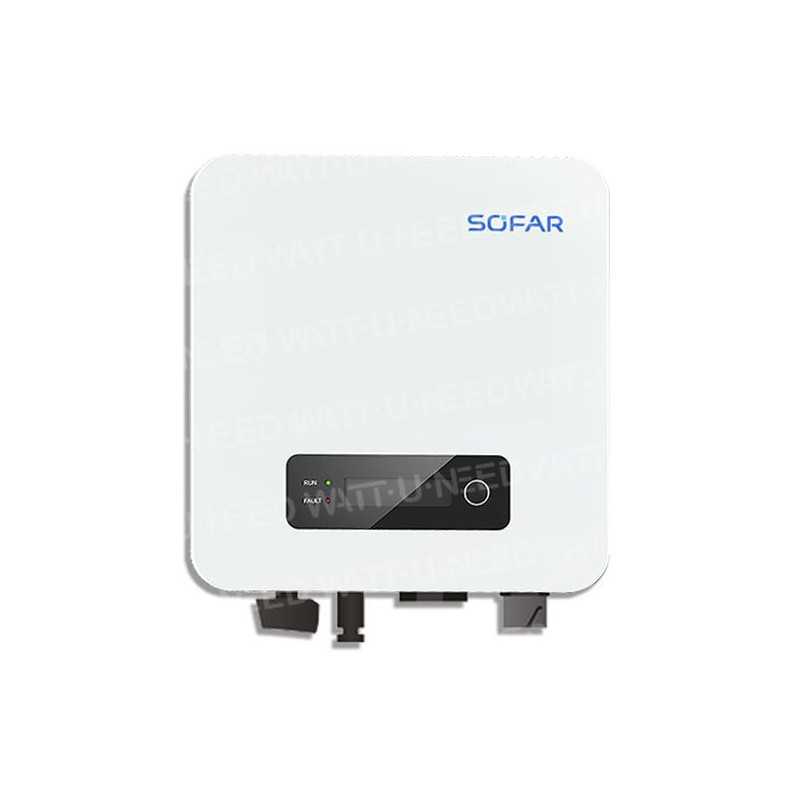

Sofar Solar Mono 1.1 kW Grid Inverter – 1100TL-G3
CFA173,785.96
Tax included
Sofar-1100TL-G3
0900012000210
Single-Phase Inverter Sofar Solar 1100TL-G3: Optimize Your Solar Energy Production
The Sofar Solar 1100TL-G3 inverter is a smart choice for residential photovoltaic installations. Compact and efficient, it ensures maximum solar electricity production while simplifying your installation.
Why choose the Sofar Solar 1100TL-G3 inverter?
- Exceptional Efficiency: Benefit from a maximum efficiency of 97.7% to optimize your energy production.
- Simplified Installation: Easy and quick installation thanks to its Plug & Play design and IP65 protection rating.
- Connected Monitoring: Monitor your production in real-time with Wi-Fi, RS485, or GPRS communication.
- Flexibility: Adapt the inverter to your needs with its multiple operating modes and wide input voltage range.
Key Advantages:
- Self-Consumption Optimization: Maximize the use of your solar energy.
- Reliability: Robust and durable design.
- Advanced Features: Reactive power management, power limitation.
Ideal for:
- Small residential photovoltaic installations
- Individuals looking to optimize their energy consumption
Simplify your solar installation with the Sofar Solar 1100TL-G3 inverter.
Request your personalized quote today and choose a high-performance, durable solar energy solution.
1
Sofar 1100TL-G3 solar inverter: Maximise your energy output
Compact single-phase inverters for small grid-connected PV systems
The SofarSolar 1.1K...3.3KTL-G3 is a sleek, compact and lightweight solar inverter for the smallest single-phase PV systems.
With an efficiency of up to 97.7%, it maximises the energy yield of your photovoltaic system. The built-in zero export function allows the user to limit the power fed into the grid by simply adding a current transformer to the system.
The inverter also comes with a WiFi dongle, allowing you to easily connect the inverter to the SofarSolar monitoring portal.
High efficiency
• Maximum efficiency of 97.5%.
• Precise real-time MPPT algorithm for maximum output
• Wide input voltage operating range
All-in-one. Flexible and cost-effective system solution
• Flexible installation options thanks to IP65 rating
• Easy installation and maintenance thanks to the ‘Plug & Play’ connection
• Choice of interface – Wi-Fi / RS485 / GPRS
• LCD + LED display
• Integrated zero export function (optional)
Low maintenance costs
• Removable cover for easy installation
• Stainless steel covers
• A flexible control solution
Smart grid management
• Reactive power capacity
• Automatic power reduction in the event of over-frequency
• Remote control of active/reactive power limits
Operating modes
A. Energy management unit
This control can be used to switch the inverter on/off via an external (remote) control.
B. Reactive power supply to the grid
The inverter is capable of generating reactive power and can therefore feed it into the grid by adjusting the phase angle. The feed-in management can be controlled directly by the grid operator via a dedicated RS485 serial interface.
C. Limiting the active power fed into the grid
If enabled, the inverter can limit the amount of active power fed into the grid by the inverter to the desired value (expressed as a percentage).
D. Automatic power reduction when the grid is over-frequency
When the grid frequency exceeds the limit value, the inverter reduces the output power, which is necessary for grid stability.
E. Data transmission
The inverter or a group of inverters can be monitored remotely via an advanced communication system based on the RS-485 serial interface, or remotely via Wi-Fi/GPRS.
F. Software updates
Support for local software updates via USB stick and remote updates via Wi-Fi/GPRS.
Wiring and connection
1. DC switch
2. PV input terminals
3. Wi-Fi/GPRS/Ethernet
4. Network connection port
5. Bleed valve
6. USB/DRMs/RS485/CT
Sofar-1100TL-G3
Data sheet
- Inverter power in VA
- 1100 VA
- Operating temperature
- -30℃ – 60℃
- Phase
- Monophasé
- Number of MPPT
- 1 MPPT
- IP protection
- IP65
- Inverter type
- Grid
- Max. recommended PV input power
- 1500 Wc
- Max. input current
- 12 A
- Starting voltage
- 70 V
- Nominal mains voltage
- L / N / PE, 230 Vac
- Rated mains frequency
- 50/60 Hz
- EMC
- EN 61000-6-1, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
- Type of cooling
- Natural convection
- Standard warranty (years)
- 10 years
- Humidity
- 0 à 100 %
- THDi (Nominal power)
- inférieur à 3 %
- Weight
- 5,5 kg
- Dimensions (L x W x D)
- 303 x 260,5 x 118 mm
- Maximum input voltage
- 500 V
- Communication
- RS485 / WiFi, optional: Ethernet
- Power factor
- 1 par défaut (+/- 0,8 réglable)
- Max. output current
- 5,3 A
- Anti-islanding protection
- Oui
- Assembly
- Montage mural
- Noise
- inférieur 25 dBA
- Display
- LCD + LED display
- Nominal input voltage
- 360 V
- Maximum efficiency
- 97,5 %
- Rated AC power
- 1100 W
- Altitude
- 2000m
- Protection against reversed DC polarity
- Oui
- Maximum DC short-circuit current
- 15 A
- MPPT operating voltage range
- 50 - 500 V
- Safety standards
- IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1, 2, 14, 30), IEC 62109-1 / 2
- Network standards
- VDE V 0124-100, VDE V 0126-1-1, VDE-AR-N 4105, G83 / 2, C10 / 11, RD 1699
