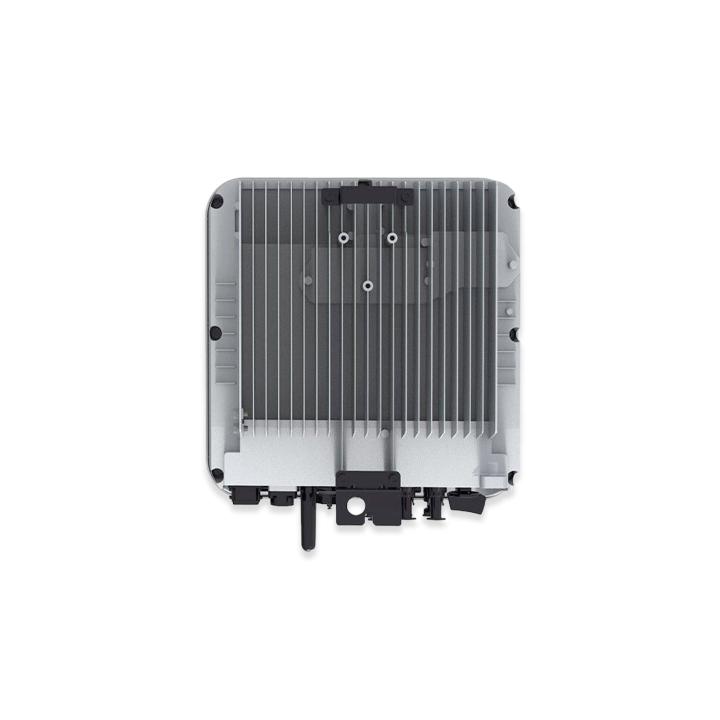

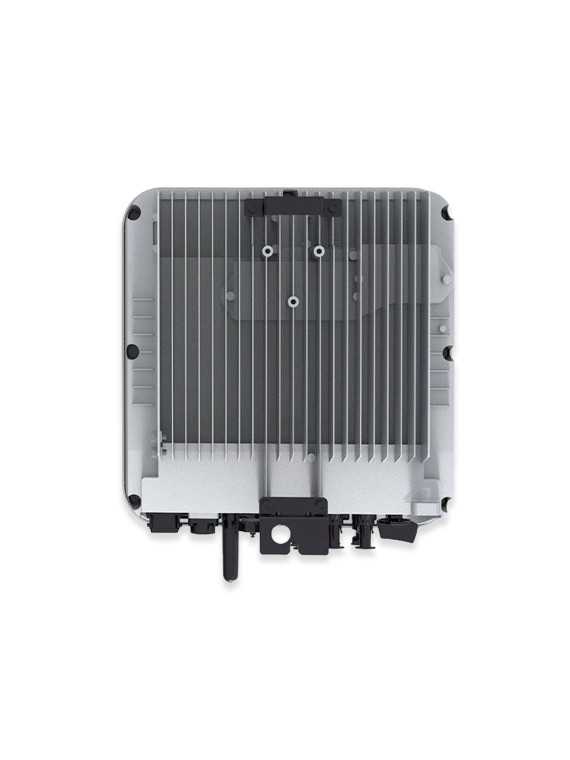

Hybrid Inverter Huawei Single-Phase 4.6 kW – SUN2000-4.6KTL-L1

The Huawei SUN2000-4.6KTL-L1: the highest efficiency in its class, with no noise

The Huawei SUN2000-4.6KTL-L1 is the 4,600 W single-phase hybrid inverter in the Huawei ecosystem. It is designed for homes of 80 to 140 m² looking to maximise their solar self-consumption with storage. Its main advantage: a maximum efficiency of 98.4% — the highest of all 4–5 kW hybrid inverters available on wattuneed.com — combined with fully passive cooling (natural convection, no fan) and a weight of just 12 kg, making wall mounting easy.

What this inverter actually does

• It converts the energy from your solar panels into 230V AC electricity with a maximum efficiency of 98.4% — every watt produced is utilised to the full
• It stores the surplus in a high-voltage Huawei Luna 2000 battery for use in the evening or at night
• It monitors your system in real time via the FusionSolar app, with built-in Wi-Fi requiring no additional purchase
• It feeds surplus energy back into the grid if your contract allows it

With 10 to 14 solar panels (5 to 7 kWp) and a 5 to 15 kWh Luna 2000 battery, a house of 80 to 140 m² can achieve 60 to 75% self-consumption, representing an estimated saving of between €650 and €1,050 per year.

98.4% efficiency: why it matters

An inverter’s efficiency represents the proportion of solar energy actually converted into usable electricity. With 98.4%, the SUN2000-4.6KTL-L1 loses only 1.6% of energy as heat during conversion — compared to 2.3% for an inverter with 97.7% efficiency and 2.4% for one with 97.6%.

On a 6 kWp system producing 6,000 kWh/year, this represents around 40 to 50 kWh more per year compared to a competitor’s inverter — without any additional panels or costs.

Passive cooling: zero noise, zero wear

The SUN2000-4.6KTL-L1 uses only natural convection to dissipate heat — no mechanical fans. This offers three concrete advantages:

• Complete silence: no fan noise, even at full load — ideal for installation in a hallway, utility room or garage attached to the house
• Increased reliability: fans are the leading cause of failure in inverters — removing them extends the service life
• Reduced weight: just 12 kg (compared to 22.5 kg for a Sofar ESI 4.6K and 24.9 kg for a Deye 8K) — wall mounting can be carried out by a single person

Compatible battery: the Huawei Luna 2000 ecosystem

The SUN2000-4.6KTL-L1 is exclusively compatible with Huawei Luna 2000 high-voltage batteries. It is a closed system — no other batteries on the market can be connected.

Up to 3 Luna 2000-5-S0 modules can be stacked to achieve a total capacity of 15 kWh. The LUNA2000-5kW-CO power module is required to activate the backup function in the event of a mains power cut.

⚠️ Important: without the Luna 2000 power module, this inverter cannot supply power to your loads in the event of a mains power cut. If uninterrupted power supply is a priority, the power module is essential.

Monitoring: FusionSolar

Wi-Fi is built into the inverter — no additional dongle is required for basic monitoring. The FusionSolar app (iOS / Android) allows you to:

• View real-time production, consumption and battery status
• Check your daily, monthly and annual savings
• Diagnose faults remotely
• Manage multiple installations from a single account

Additional connectivity options (optional): Smart Ethernet Dongle (WLAN-FE) for wired connection, Smart 4G/3G/2G Dongle for areas without Wi-Fi.

Installation

Installation must be carried out by a qualified electrician. Key points:

• Weight of 12 kg — easy wall mounting, installation by a single person possible
• Compact dimensions: 365 × 360 × 156 mm
• Main circuit breaker suitable for 4.6 kW single-phase (minimum 25A)
• Operates without a battery immediately after installation
• The Huawei DDSU666-H Smart Meter is required for smart self-consumption management (not included)
