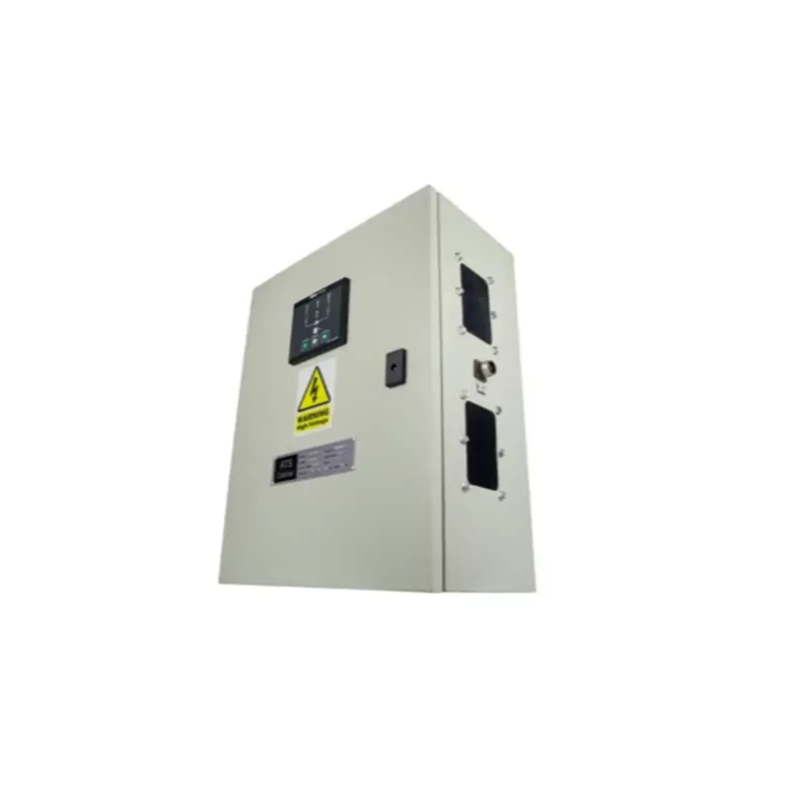

ITC Power - ATS 400V Three-phase 100A box - Automatic transfer
CFA662,349.37
Tax included
AC-ATS-W-100A-3
0768563823619
TheATS BOX 100A 400 V is an automatic switchover box designed to guarantee a continuous power supply between the mains and an industrial generator set. Compatible with ITC POWER 400 V three-phase diesel generators equipped with automatic start, it ensures rapid, safe switching in the event of a power cut. Thanks to its high capacity of 100 A, it is suitable for professional and industrial installations up to around 70 kVA. Robust and reliable, this ATS is ideal for sites requiring continuity of supply without manual intervention, while guaranteeing long-term safety and performance.
ATS BOX 100A 400 V – Automatic transfer switch for ITC POWER generators
The ATS BOX 100A 400 V is an automatic transfer switch designed to ensure safe switching between the mains supply and an industrial diesel generator set. In the event of a mains failure, it automatically triggers the generator to start and transfers the load without human intervention. Once the mains supply is restored, the switch automatically returns to the main supply.
Reliable and robust, this ATS is intended for professional and industrial installations requiring uninterrupted power supply.
Compatibility – Suitable for:
- 400 V three-phase generators equipped with an ATS automatic start
- ITC POWER diesel generators – industrial range
- Compatible power ratings up to ≈ 70 kVA (depending on rated current)
- Compatible ITC POWER models:
- DG14KSE
- DG16KSE
- DG20KSE
- DG30KSE
- DG34KSE
- DG45KSE
- DG60KSE
⚠️ The choice of ATS must be confirmed based on the maximum current of the generator set and the installation. Installation by a qualified electrician is recommended.
Technical specifications
| Specification | |
|---|---|
| Voltage | 400 V three-phase |
| Maximum current | 100 A |
| Function | Automatic mains/generator switching |
| Mains type | Three-phase |
| Transfer time to the generator | ≈ 2 to 5 seconds |
| Mains return time | ≈ 10 seconds |
| Enclosure | Robust housing – industrial use |
Key features
- Direct compatibility with ITC POWER – industrial diesel range
- High capacity 100 A for powerful generators
- Rapid automatic switching in the event of a mains power failure
- Optimal electrical safety for sensitive installations
- Designed for intensive professional use
FAQ – ATS BOX 100A 400 V
What is this ATS box used for?
It automatically switches between the mains supply and a generator in the event of a power cut, without the need for manual intervention.
Which generators is it compatible with?
It is compatible with ITC POWER 400 V three-phase diesel generators equipped with an automatic start-up system, up to approximately 70 kVA.
Is it suitable for industrial use?
Yes, its 100 A capacity makes it perfectly suited to commercial and industrial installations.
Does the installation need to be carried out by a professional?
Yes, the installation must be carried out by a qualified electrician to ensure the safety and compliance of the installation.
AC-ATS-W-100A-3
Specific References
- UPC
- 768563823619
- EAN13
- 0768563823619
- MPN
- AC-ATS-W-25A-3
ITC Power - ATS 400V Three-phase 100A box - Automatic transfer — Generators
ITC Power - ATS 400V Three-phase 100A box - Automatic transfer by ITCPower is available in our Generators catalog. Product weight: 9.5 kg. Reference: AC-ATS-W-100A-3.
